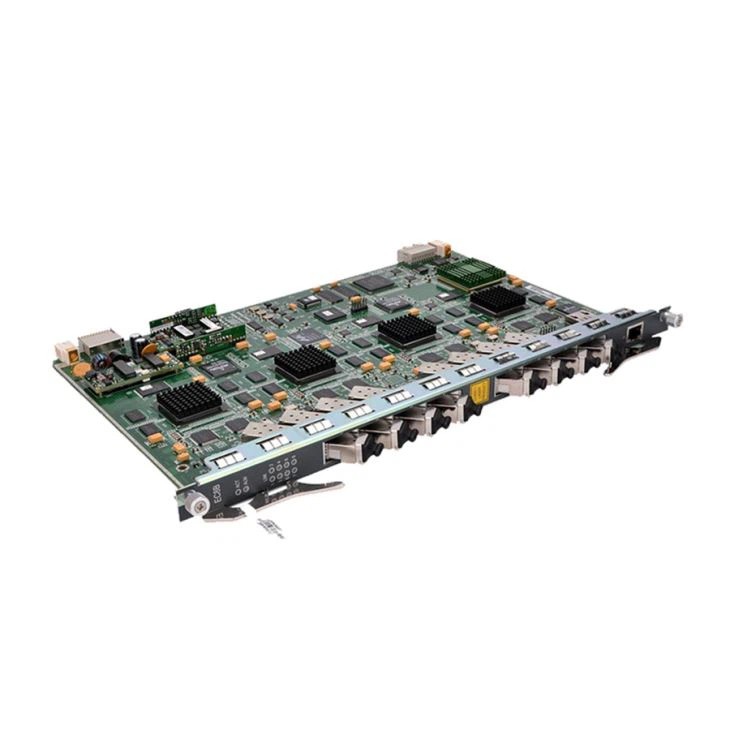

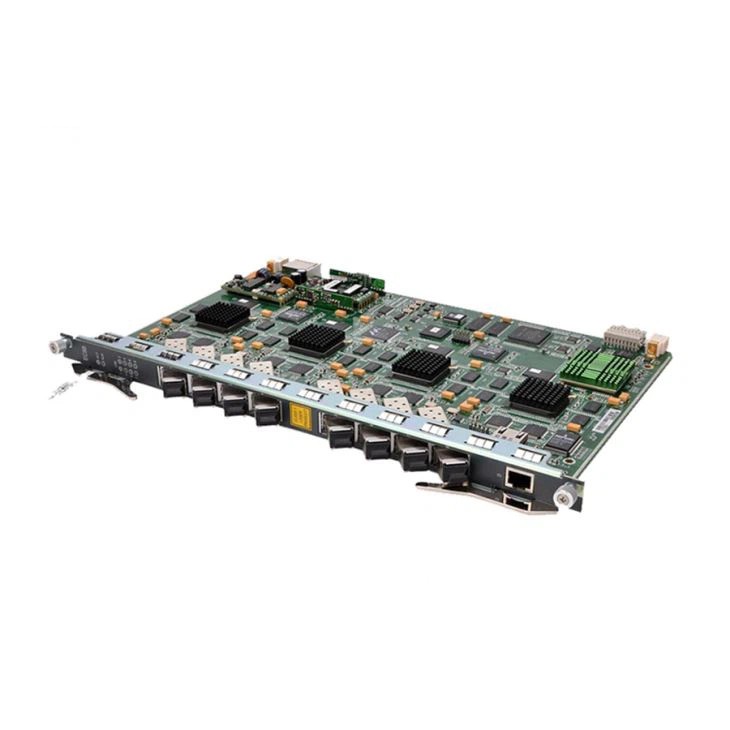

Service Card EC8B 8 Ports EPON Board

Product Item : EC8B
Category： EPON
Product description：Aggressive Promotion Price 100% Original Fiberhome Service Card EC8B 8 Ports EPON Board Includes 8 pcs PX20+ Optical SFPs 1.Product description of the EC8B EC8B Basic principle introduction: Exchange
INQUIRY EMAIL

Product Description:

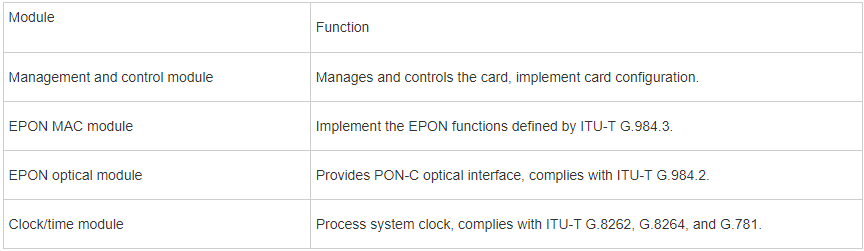

1.Product description of the EC8B

EC8B Basic principle introduction:
Exchange module to achieve the convergence of 8 EPON port signals.
Interface module to realize the mutual conversion between EPON optical signal and Ethernet message.
The clock module provides a working clock for each function module in a single board.
The power supply module provides a working power supply for each function module in a single board.

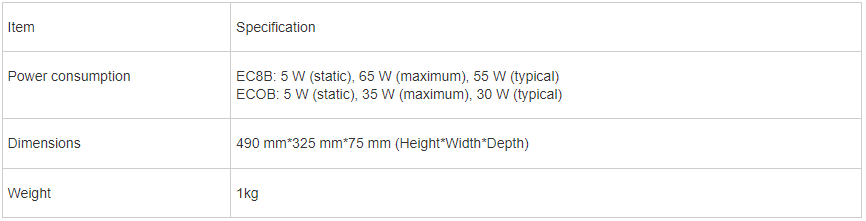

2.Product parameter of the EC8B

3.Product feature and application of the EC8B

* High TM Performance:
- Support H-QOS
- 1024 queues and 356 schedulers per PON port
- Support color-sensitive RED and WRED discard algorithm
* Clock / Time Function:
- Receive 1PPS+TOD signals and send them to the ONU through a PON channel
* Low Power Consumption:
- Newly developed lower power EPON MAC chip
- Reduce 30% power consumption on industry average
* High Density:
- 8 EPON ports per card, up to 1:128 split ratio
* EPON Function:
- Support ONU power saving management defined in G.987.3
- 1024 T-CONTs per PON port, 4096 GEM ports per PON port

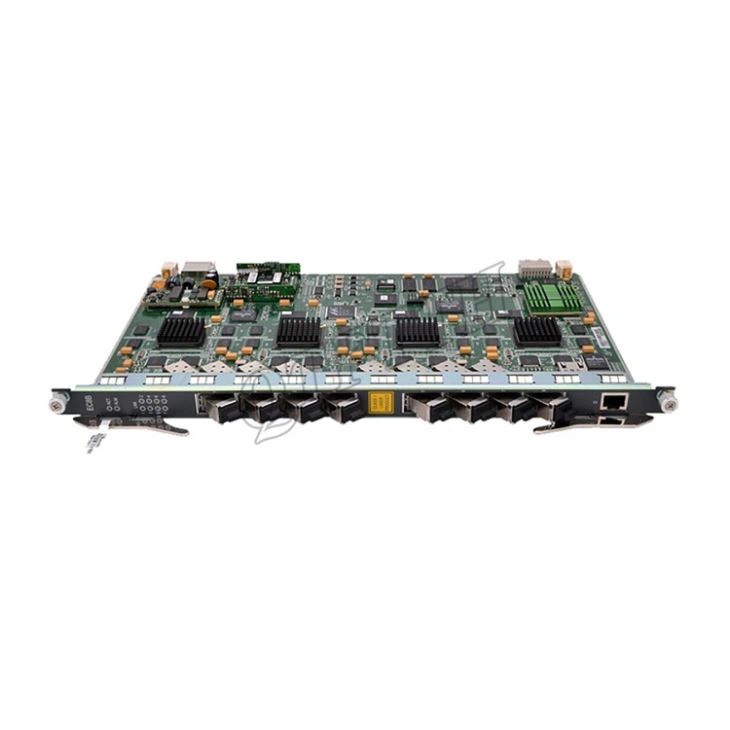

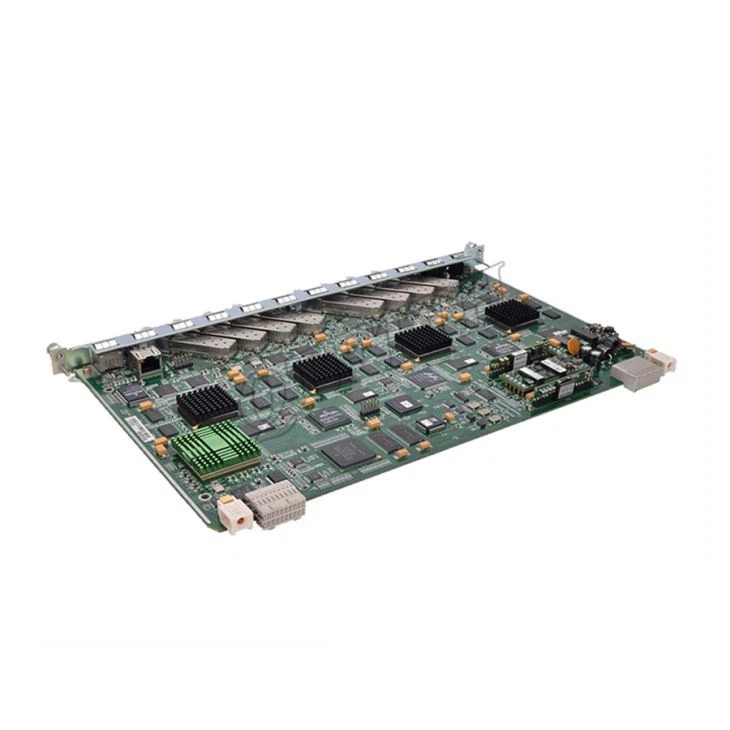

4.Product details of the EC8B
