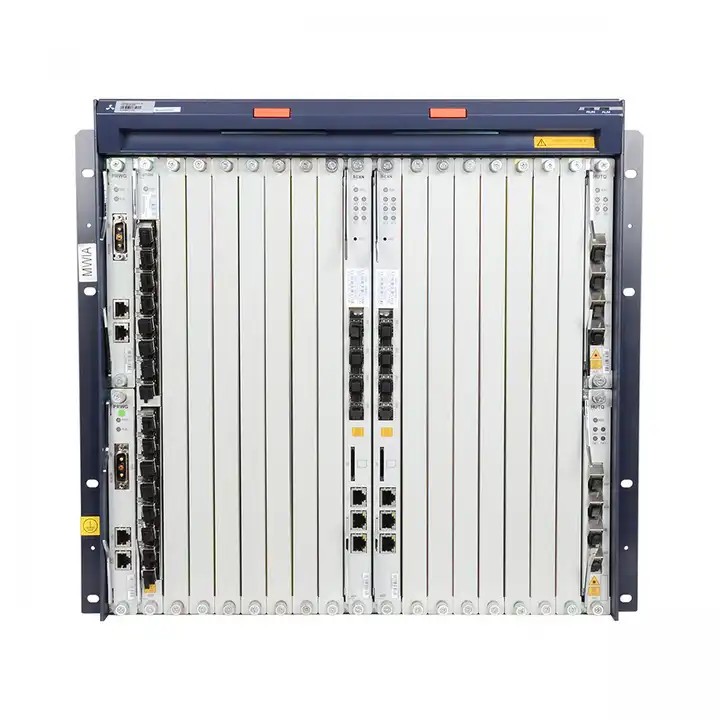

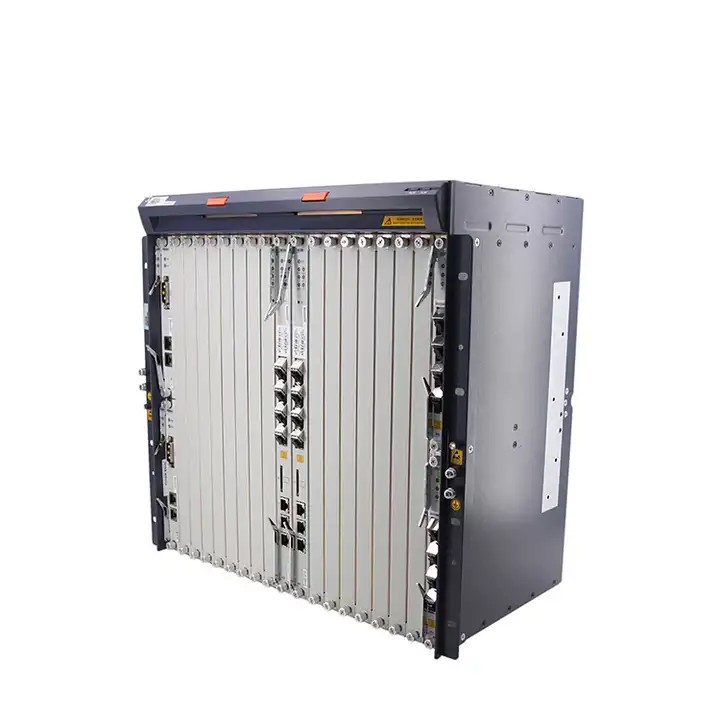

10G GPON OLT C300

Networking Solutions :

As a multi-service optical access platform, ZXA10 C300 supports multiple access modes to suit various networking scenarios in different environments. ZXA10 C300 provides the following networking solutions:

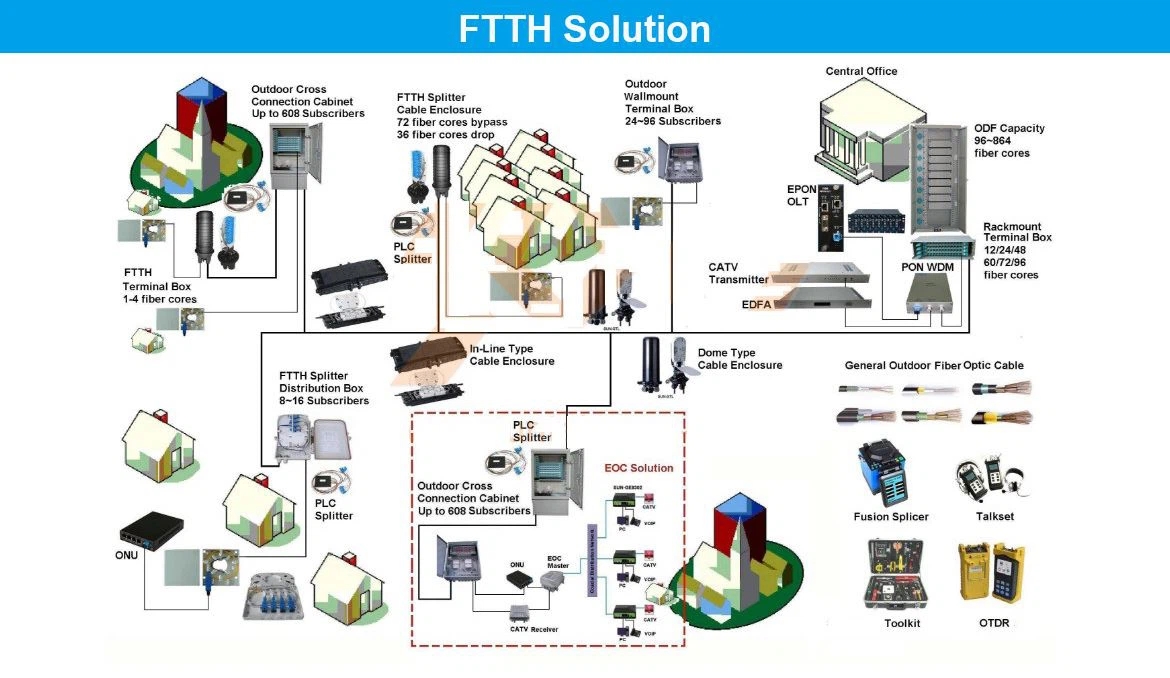

--FTTx optical access solution

ZXA10 C300 supports voice, data and video services through a piece of fiber. It supports the access of multiple service with large capacity, high rate and high bandwidth.

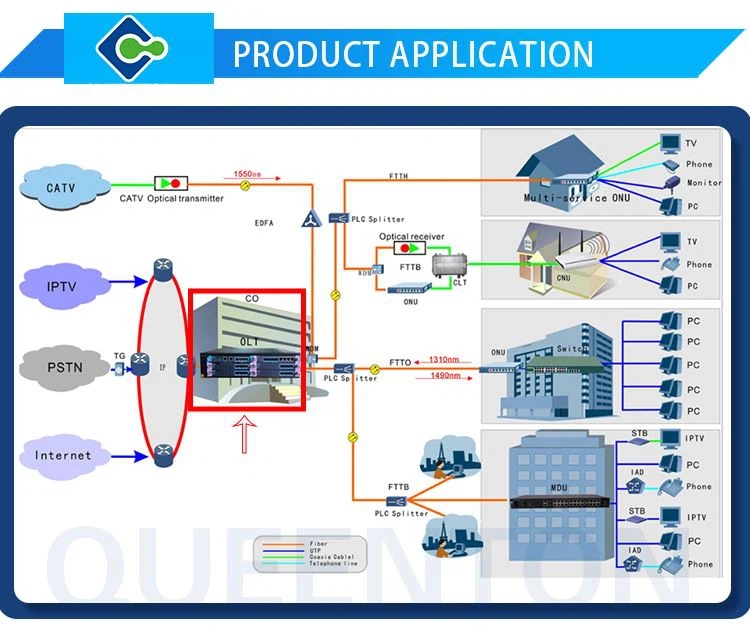

--Triple play solution

Triple play users, including Internet access users, VoIP users,and video users, are connected to ZXA10 C300 through ONT.ZXA10 C300 transmits service packets to the upper–layer device after service processing.

--P2P optical access solution

ZXA10 C300 is connected to P2P ONT at the user home via fiber. It supports high-rate Internet access, VoIP and IPTV services.

--Base station Backhaul transmission sOLTion

ZXA10 C300 is directly connected to the base station through P2P or P2P loop, then, connected to BSC.

--Equipment interconnection solution

P2P interface of ZXA10 C300 can be used for equipment interconnection in case that fiber resource is not enough.

Multicast Services

With large switching capacity, high packet forwarding rate and high integration of data switching, routing, and user management functions, ZXA10 C300 supports carrier-class multicast capabilities.ZXA10 C300 provides flexible multicast solutions by supporting

IGMP V1/V2/V3 on the user side interface and the network side interface.

--Multicast Protocols

IGMP V1/V2/V3

IGMP Proxy and IGMP Snooping

--Multicast Services

4096 multicast groups

Receiving video data flow from multiple uplink interfaces

CAC

IGMP pre-join, fast-leave, and high performance processing

Channel preview, setting the maximum number of preview times in a day

Audience statistics

Multicast VLAN and multi VLAN

--User Management

Multiple authentication modes for multicast users to meet the requirements of different multicast operators

Controllable multicast to control users access to multicast groups

Multicast package



Capacity and Integration

ZXA10 C300 integrates optical access, data switching and router processing, enhancing the system integration. ZXA10 C300 capacity features are described as follows:

--Bus bandwidth of the backplane: 3.2 Tbps

--Capacity of the switching card: 400 Gbps

--A single shelf supports 16384 GPON ONTs. A single cabinet supports 32768 GPON ONTs.

--ZXA10 C300 has non-block switching capability so it can provide more than 80 Gbps upstream bandwidth.



QoS

ZXA10 C300 provides the network service with different service quality, namely, the high QoS guarantee. ZXA10 C300 supports:

--End-to-end (OLT to ONT) QoS solution

--Schedule at both OLT and ONT

--SP, WRR and SP+WRR schedule policies

--Eight priority queues

--CoS (802.1p) and flow priority

--Data flow rule-based packet filtering, relocation, traffic mirroring, traffic statistics, traffic monitoring, traffic shaping, port queue scheduling, port rate restriction and VLAN translate

--Traffic classification and priority control based on port, MAC address, IP address and protocol

--DBA
