ZXA10 C320 Device Optical Access Equipment MINI 2U OLT For FTTH System
1.Product description of the C320
The ZXA10 C320 Optical Access Convergence Equipment (ZXA10 C320 for short) is a 2U-height OLT device, which satisfies the market requirement for small-capacity OLTs.This manual describes the hardware structure of the ZXA10 C320.With the requirements of communication services increasing,the value added services (VAS) including 3D network games,video conference/phone,Video on Demand (VoD) and IPTV are key means for operators to provide differential services to attract more subscribers,and gain income growth. ZXA10 C320,a small size,full-service optical access convergent platform,provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.

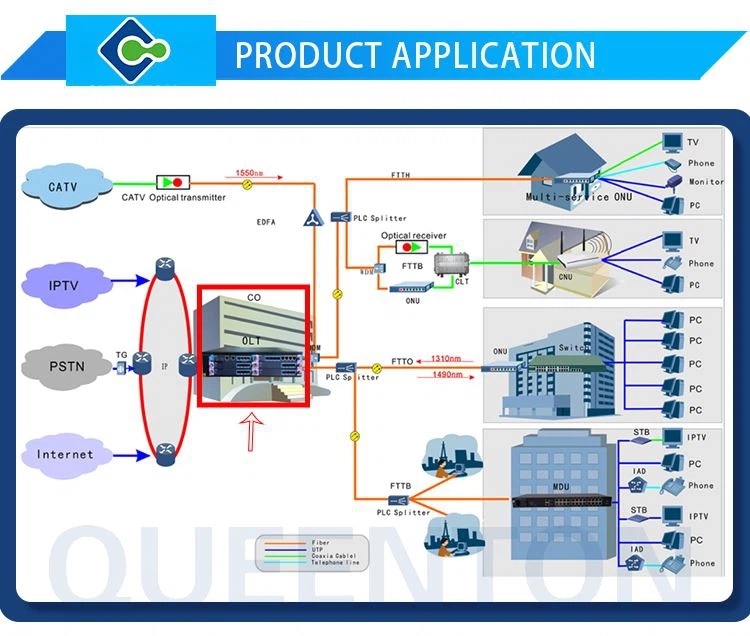

3.Product feature and application of the C320

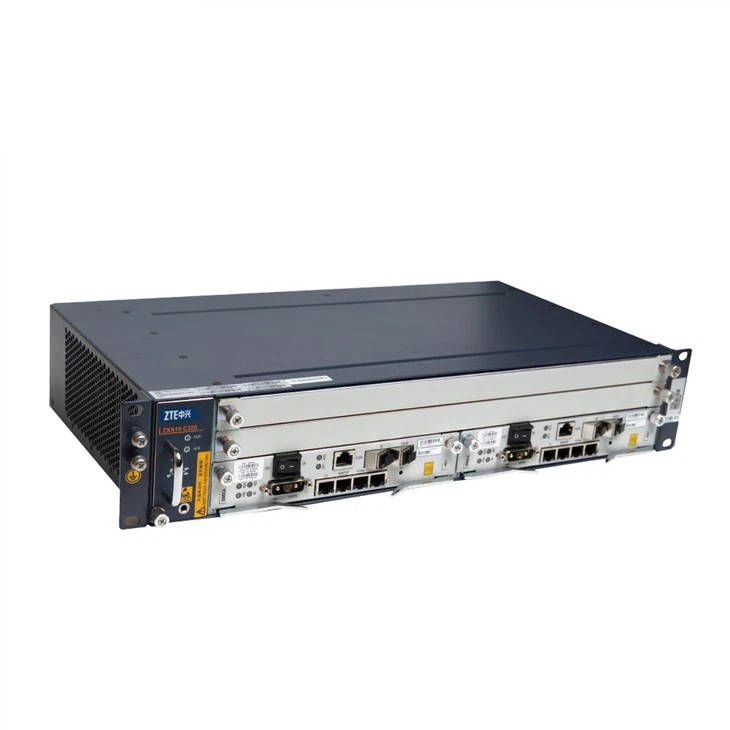

C320 MINI OLT (2U)
1.Unified platform for GPON,EPON and P2P
2.Small size and compact design, flexible network and fast deployment
3.2U frame with 2 service slots, compatible with ZXA10 C300 line cards
4.Abundant service support capability: IPTV, VoIP,HSI, VPN, mobile backhaul, etc
5.Diverse interfaces: P2MP/P2P /TDM interfaces for business and residential application
6.Higher security assurance: ONT authentication,user ID identification, port isolation, address binding, packet filtering, and broadcast packet suppression.
7.High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ STP/RSTP/MSTP/ZESR for uplink
8.Service differentiation: Comprehensive QoS mechanisms for voice, video and high speed Internet services.
9.Support DC input redundancy
10.Support 1:1 protection for PON interfaces
11.Support 1:1 protection for SW (core card) card
12.Support Synchronous Ethernet and 1588v2
Security
*L2- L4 ACL
*IP and MAC source guard
*Resistance against DOS attacks
*MAC/IP anti-spoofing (MAC binding,IP binding, DHCP snooping)
*Anti-flooding:broadcast packet suppression, IGMP packet suppression, DHCP packet suppression

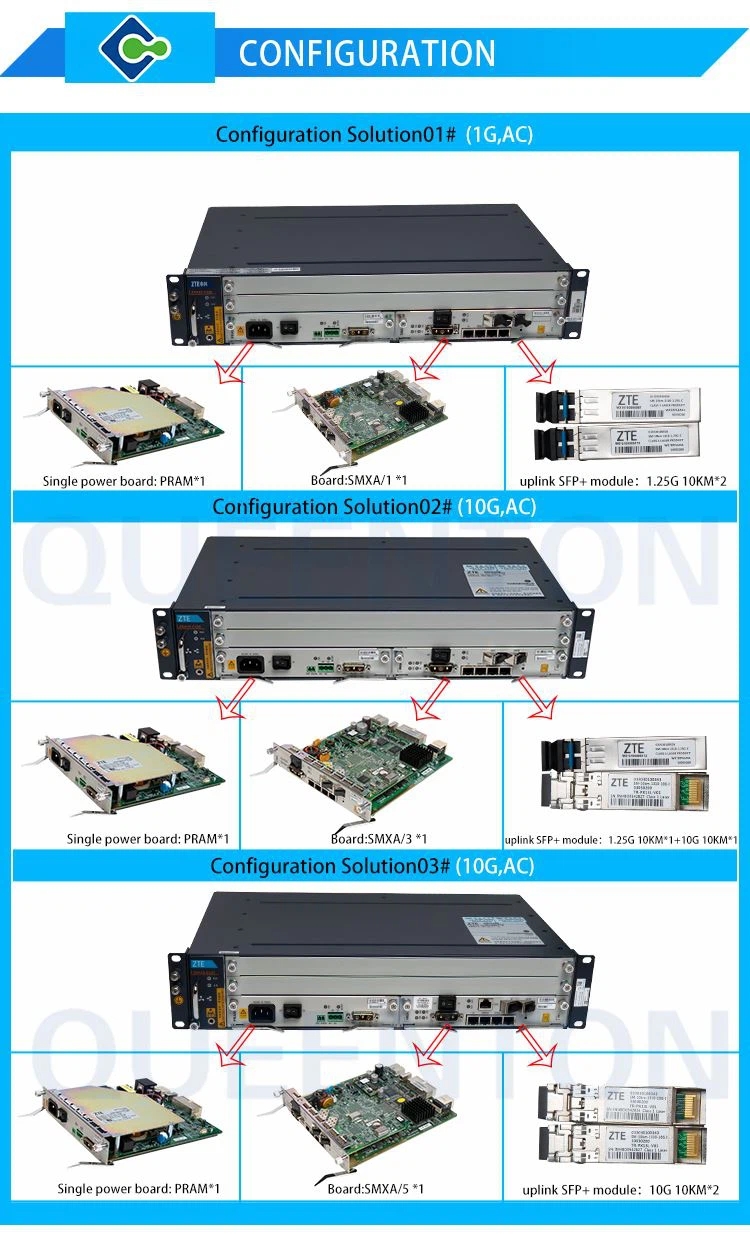

4.Product details of the C320

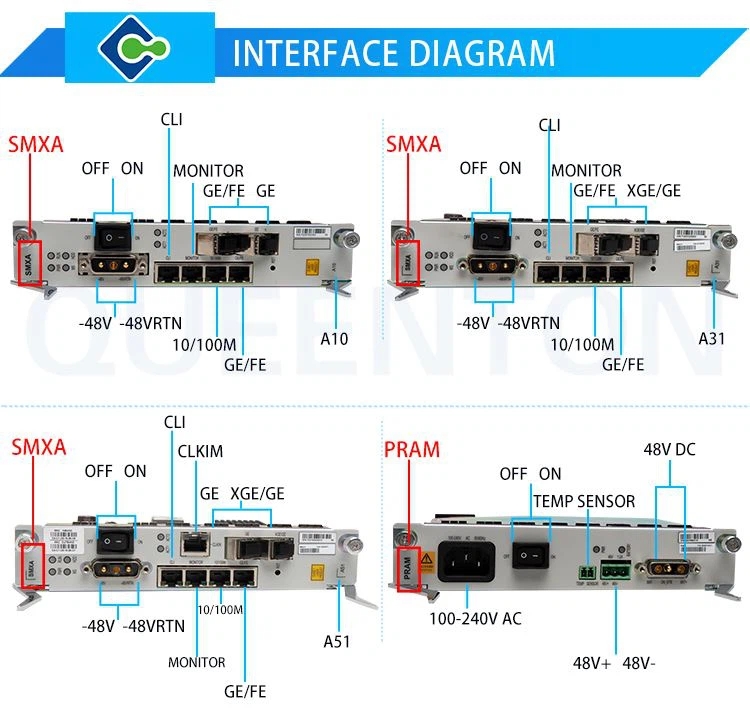

1G DC OLT Configuration:Control&Uplink&Power Board:SMXA/1*2
10G DC OLT Configuration:Control&Uplink&Power Board:SMXA/3*2
1G AC&DC OLT Configuration:Single Control&Uplink&Power Board:SMXA/1*1
Power Board:PRAM*1
10G AC&DC OLT Configuration:Single Control&Uplink&Power Board:SMXA/3*1
Power Board:PRAM*1
