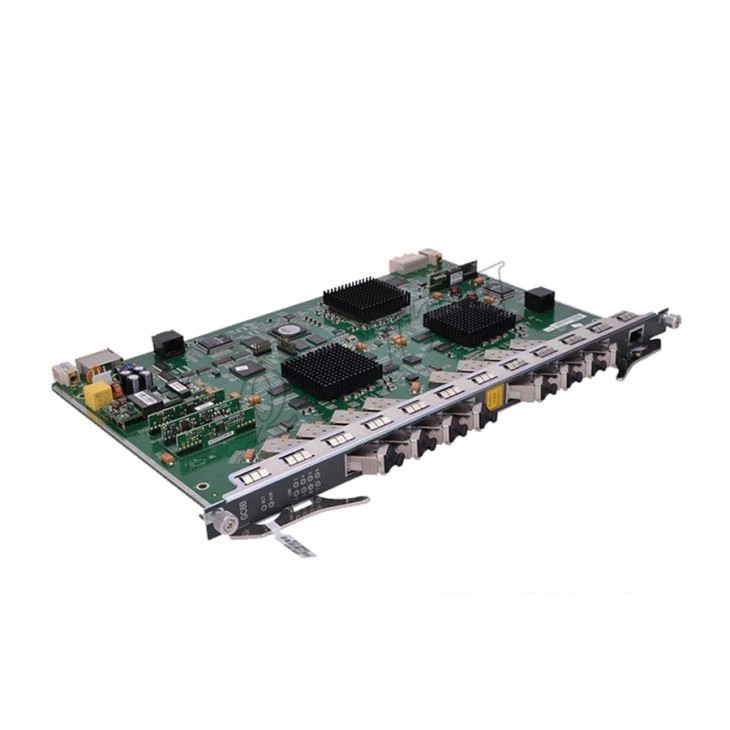

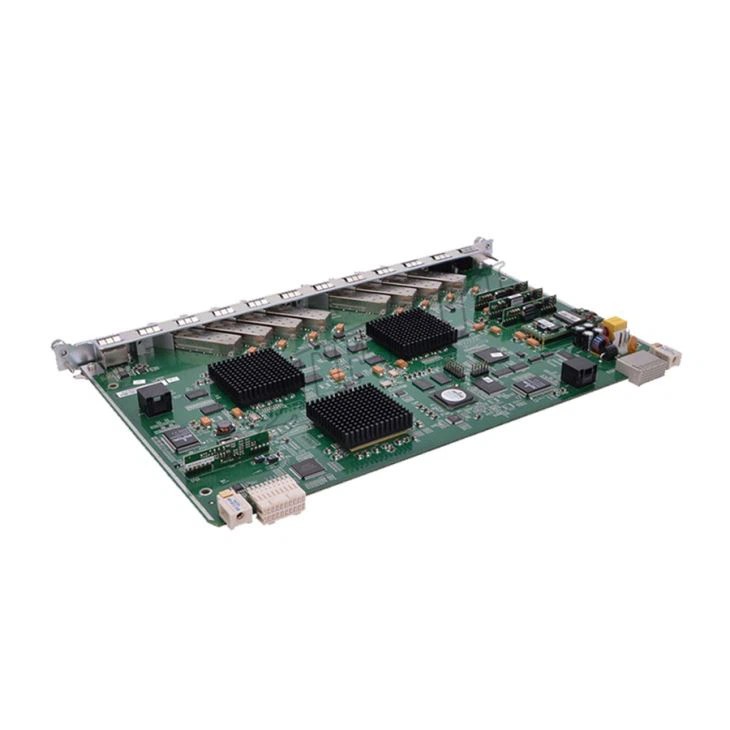

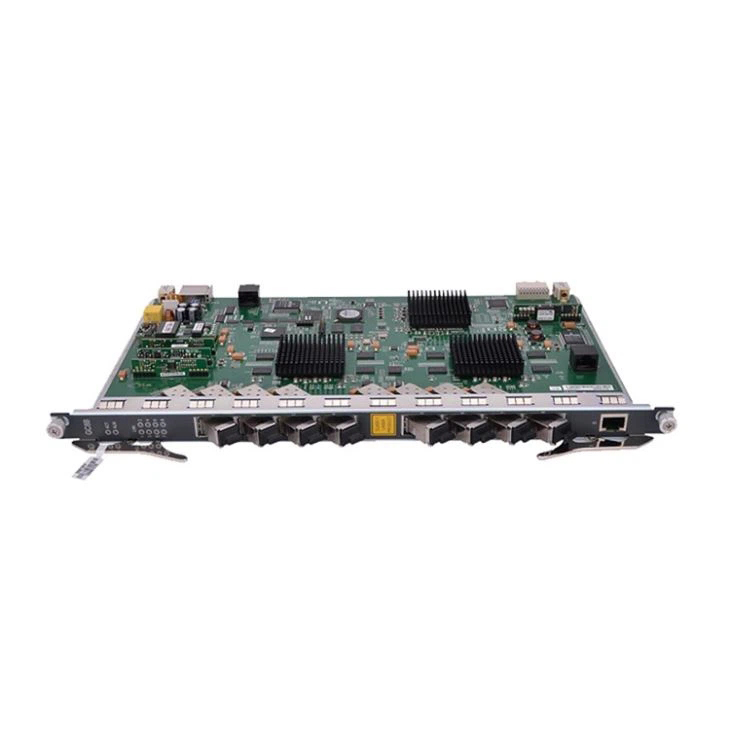

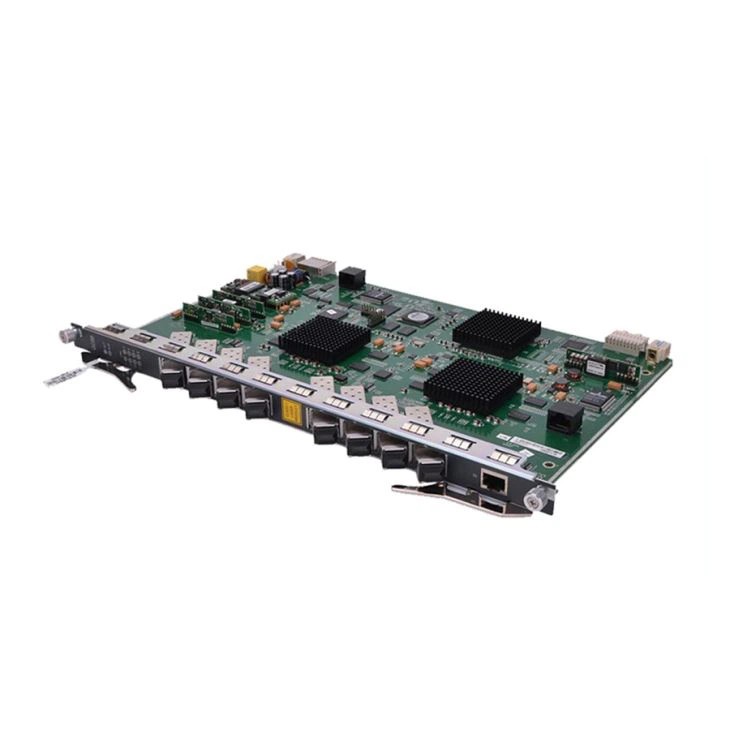

GC8B Service Card 8 Ports

New Original Fb-H Service Card GC8B 8 Ports GPON Board Containing 8 pcs C+ Optical Modules

1.Product description of the GC8B

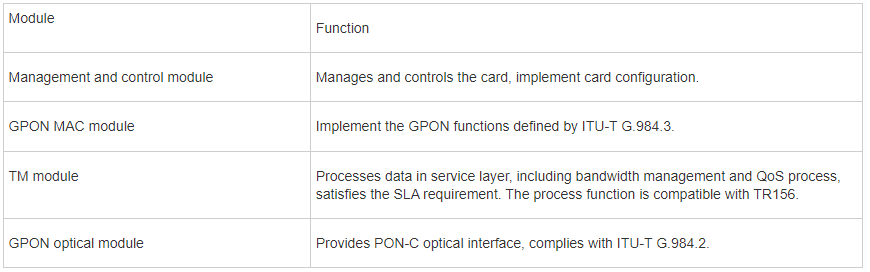

 GC8B Basic principle introduction:
 Control module to complete the single board software loading, operation control, management and other functions.
 Exchange module to achieve the convergence of 8 GPON port signals.
 Interface module to realize the mutual conversion between GPON optical signal and Ethernet message.
 The clock module provides a working clock for each function module in a single board.

3.Product feature and application of the GC8B

 * High TM Performance:
 - Support H-QOS
 - 1024 queues and 356 schedulers per PON port
 - Support color-sensitive RED and WRED discard algorithm
 * Low Power Consumption:
 - Newly developed lower power GPON MAC chip
 - Reduce 30% power consumption on industry average
 * High Density:
 - 8 GPON ports per card, up to 1:128 split ratio
 * GPON Function:
 - Support ONU power saving management defined in G.987.3
 - 1024 T-CONTs per PON port, 4096 GEM ports per PON port

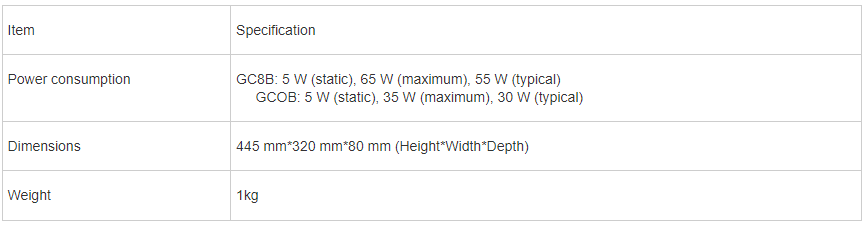

4.Product details of the GC8B
