GTGO Service Card 8 Ports

Competitive Price Original English Version ZX Service Card GTGO 8 ports GPON Board with 8 C+ modules

1.Product description of the GTGO

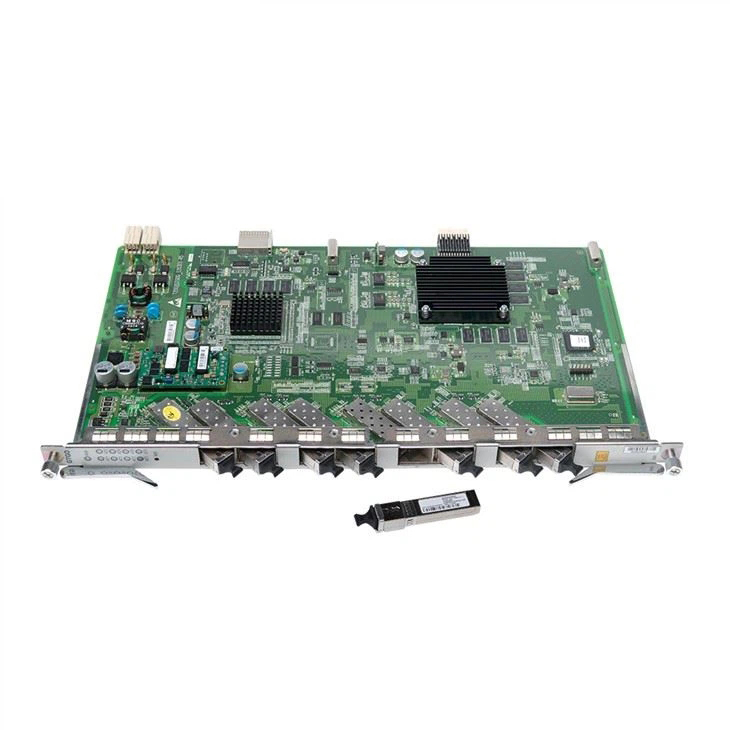

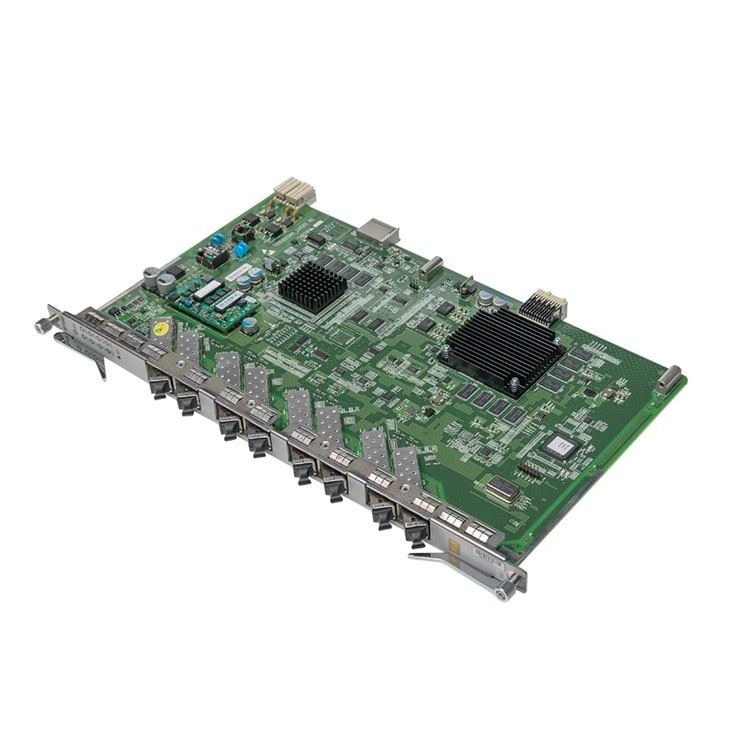

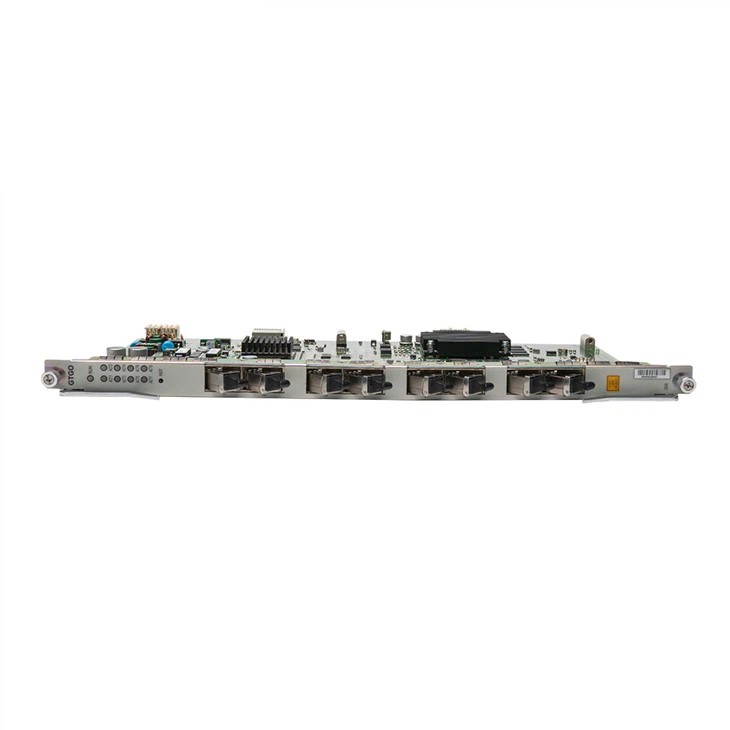

The ZX GTGO is an 8 Ports GPON subscriber card designed to be used with ZXA10 C300 and ZXA10 C320 equipment.

2.Product parameter of the GTGO

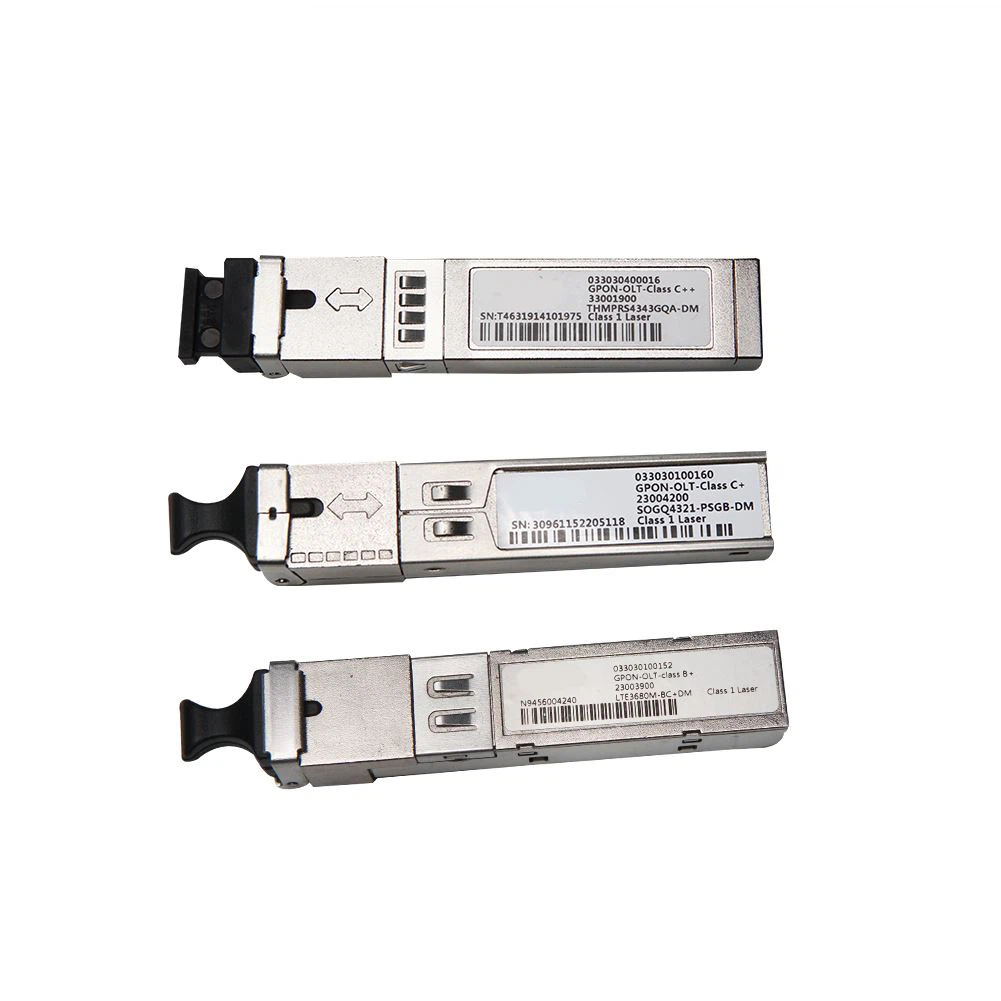

 SFP modules introduction:
 Form: SFP/ESFP
 Rate: 2.5Gb/s
 Optical connector type: SC/UPC
 Fiber type: single mode
 Maximum light splitting ratio: 1:128

3.Product feature and application of the GTGO

 * High Density:
 - 16 GPON ports per card, up to 1:128 split ratio
 * GPON Function:
 - Support ONU power saving management defined in G.987.3
 - 1024 T-CONTs per PON port, 4096 GEM ports per PON port
 * High TM Performance:
 - Support H-QOS
 - 1024 queues and 356 schedulers per PON port
 - Support color-sensitive RED and WRED discard algorithm
 * Low Power Consumption:
 - Newly developed lower power GPON MAC chip
 - Reduce 30% power consumption on industry average

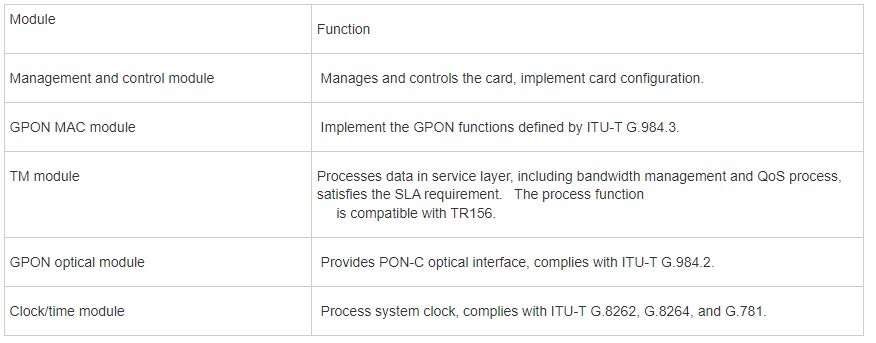

4.Product details of the GTGO
