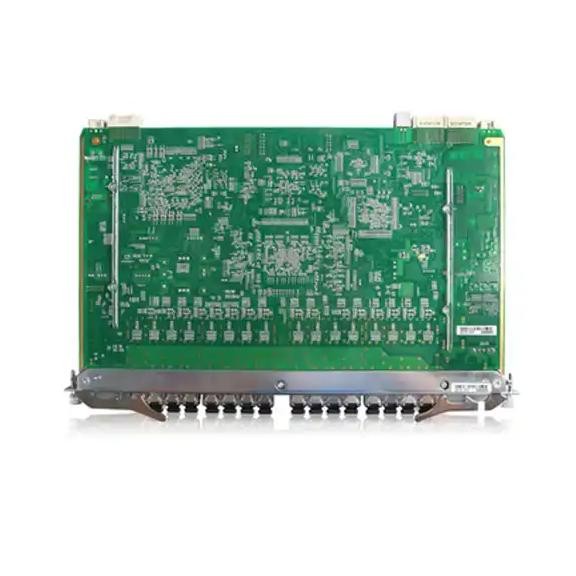

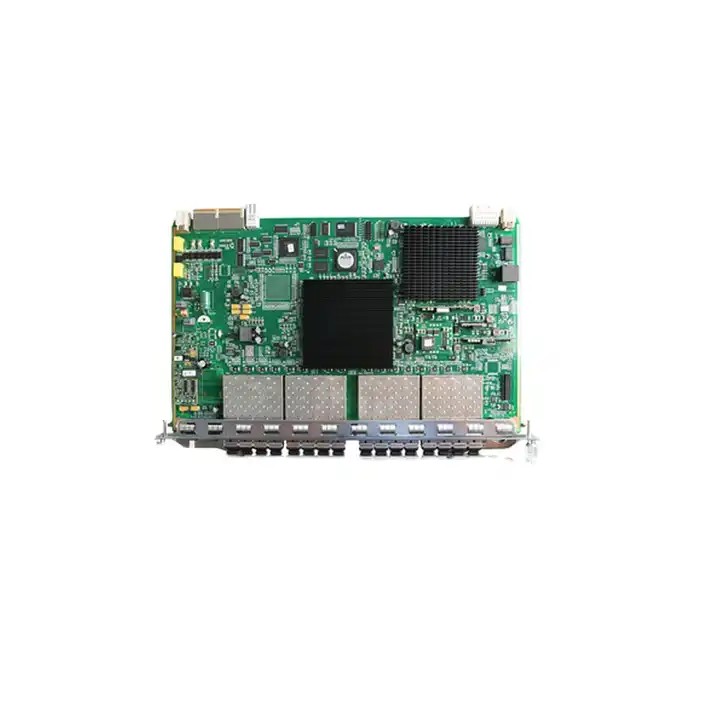

GCOB Gpon Service Card

New Original FB-H Service Card GCOB 16 Ports GPON Board Containing 8 pcs C+ Optical Modules

1.Product description of the GCOB

 GCOB Basic principle introduction:
 Control module to complete the single board software loading, operation control, management and other functions.
 Exchange module to achieve the convergence of 16 GPON port signals.
 Interface module to realize the mutual conversion between GPON optical signal and Ethernet message.
 The power supply module provides a working power supply for each function module in a single board.

2.Product parameter of the GCOB

 GPON C+ Optical module introduction:
 Form:SFP/ESFP
 Rate:1.25Gb/s
 Optical connector type:SC/PC
 Fiber type: single mode
 Maximum light splitting ratio: 1:128
 Apply to AN5516-01/AN5516-06/AN5516-04

3.Product feature and application of the GCOB

 * High Density:
 - 8 GPON ports per card, up to 1:128 split ratio
 * GPON Function:
 - Support ONU power saving management defined in G.987.3
 - 1024 T-CONTs per PON port, 4096 GEM ports per PON port
 - Support color-sensitive RED and WRED discard algorithm
 * Clock / Time Function:
 - Receive 1PPS+TOD signals and send them to the ONU through a PON channel
 * Low Power Consumption:
 - Newly developed lower power GPON MAC chip
 - Reduce 30% power consumption on industry average
 * High TM Performance:
 - Support H-QOS
 - 1024 queues and 356 schedulers per PON port

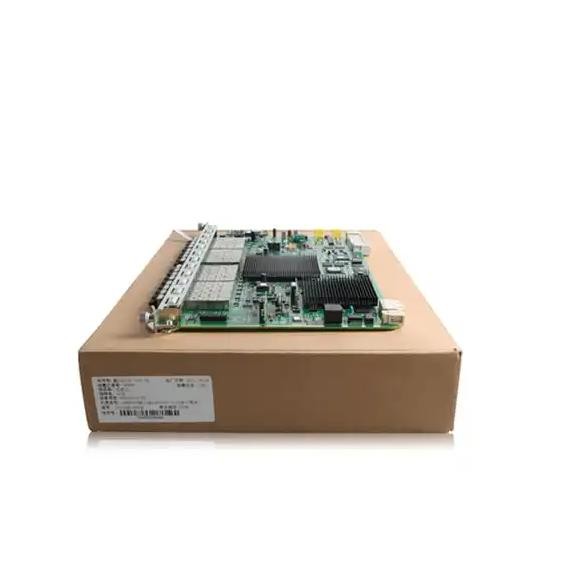

4.Product details of the GCOB
